Model Whirlpool 1423^1A GAS RANGE – Common Parts & Diagrams

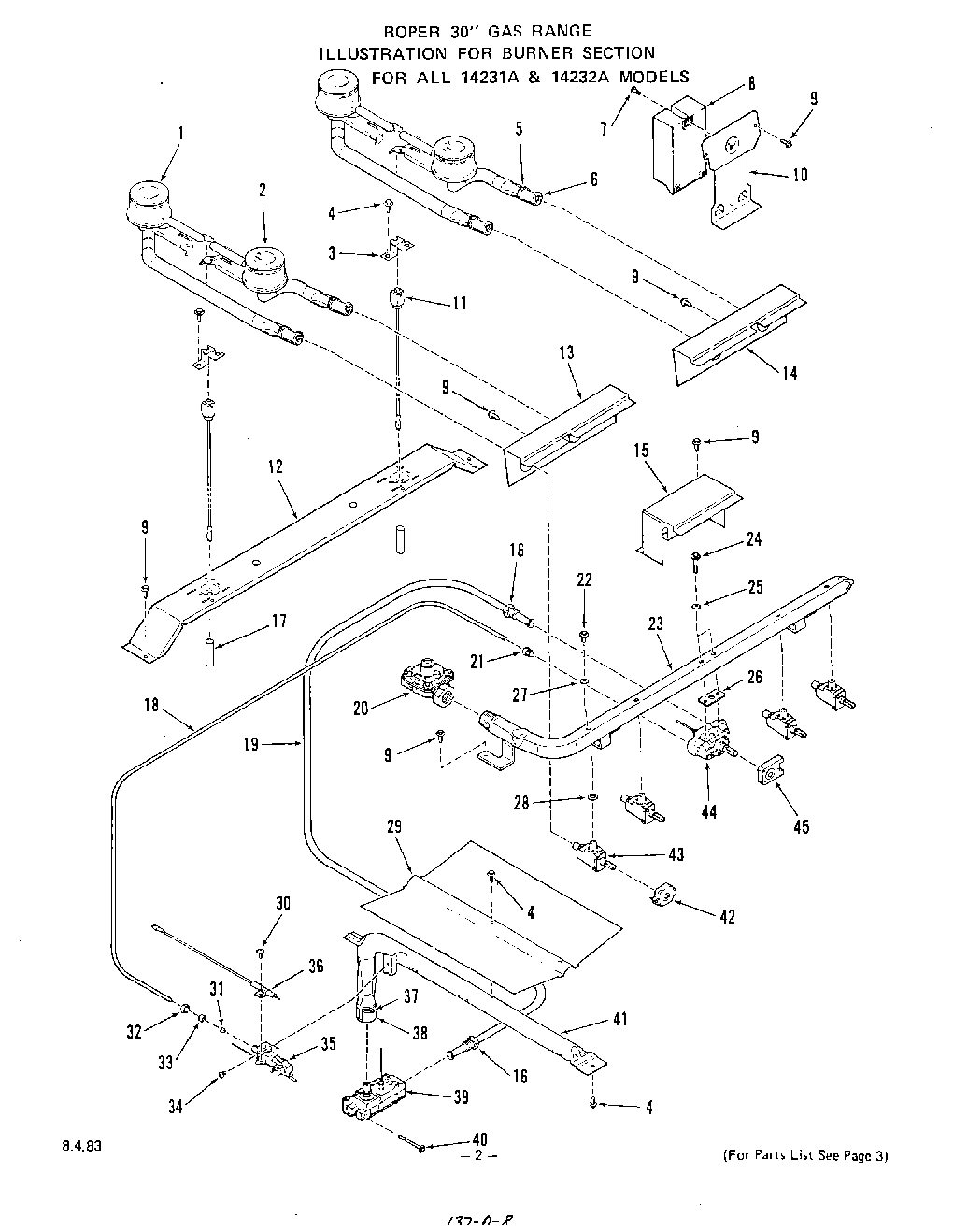

03 - BURNER

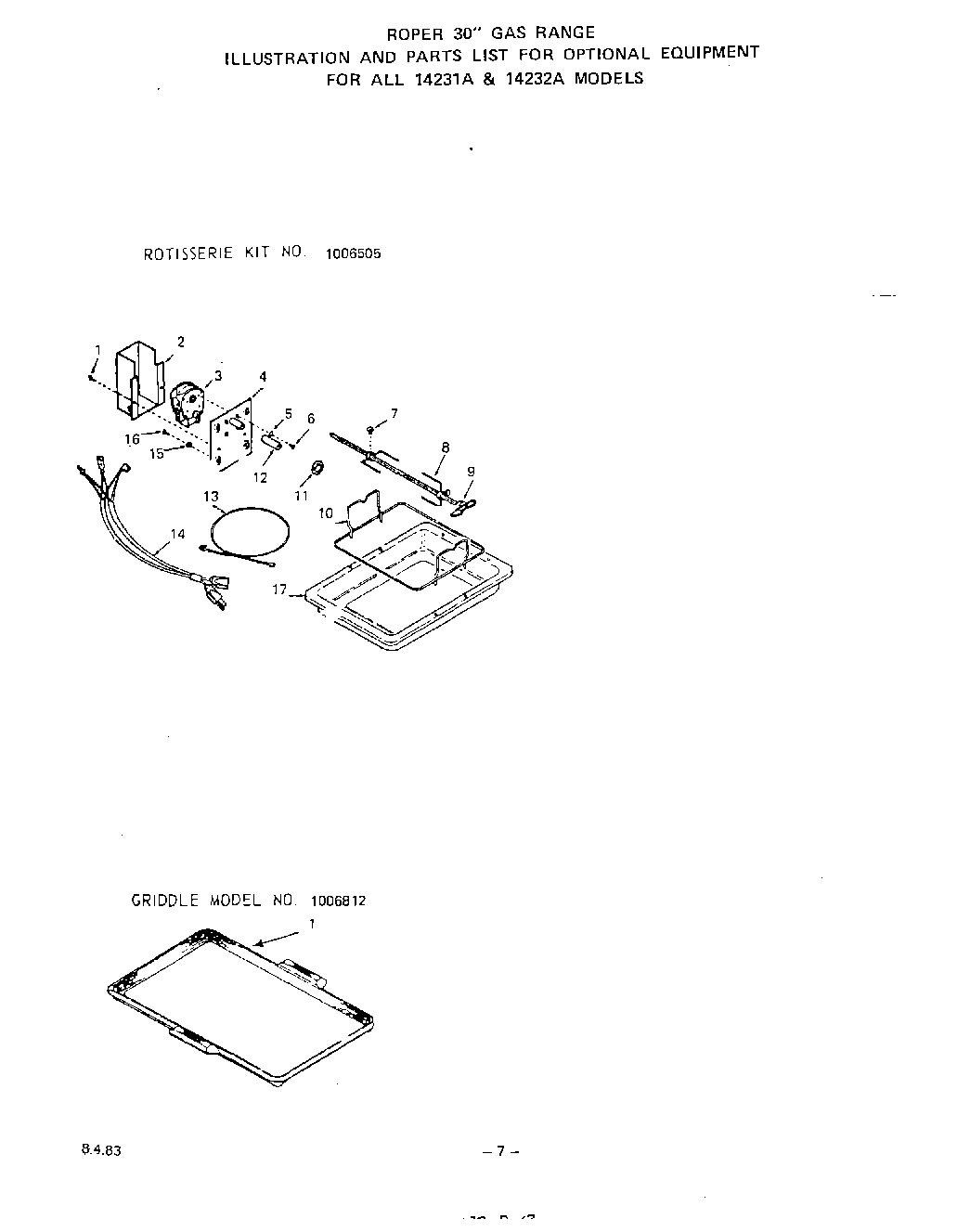

06 - ROTISSERIE KIT, GRIDDLE

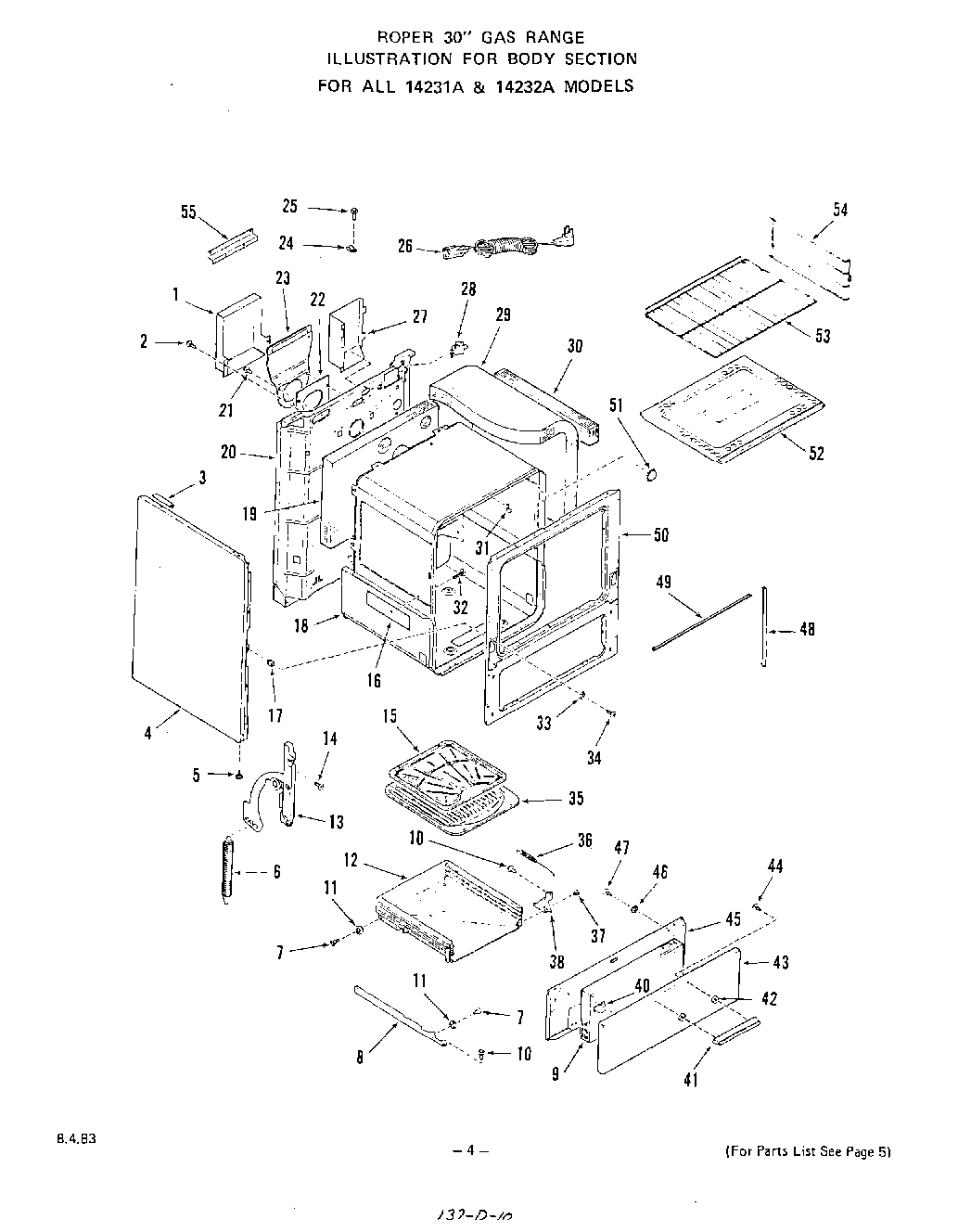

04 - BODY

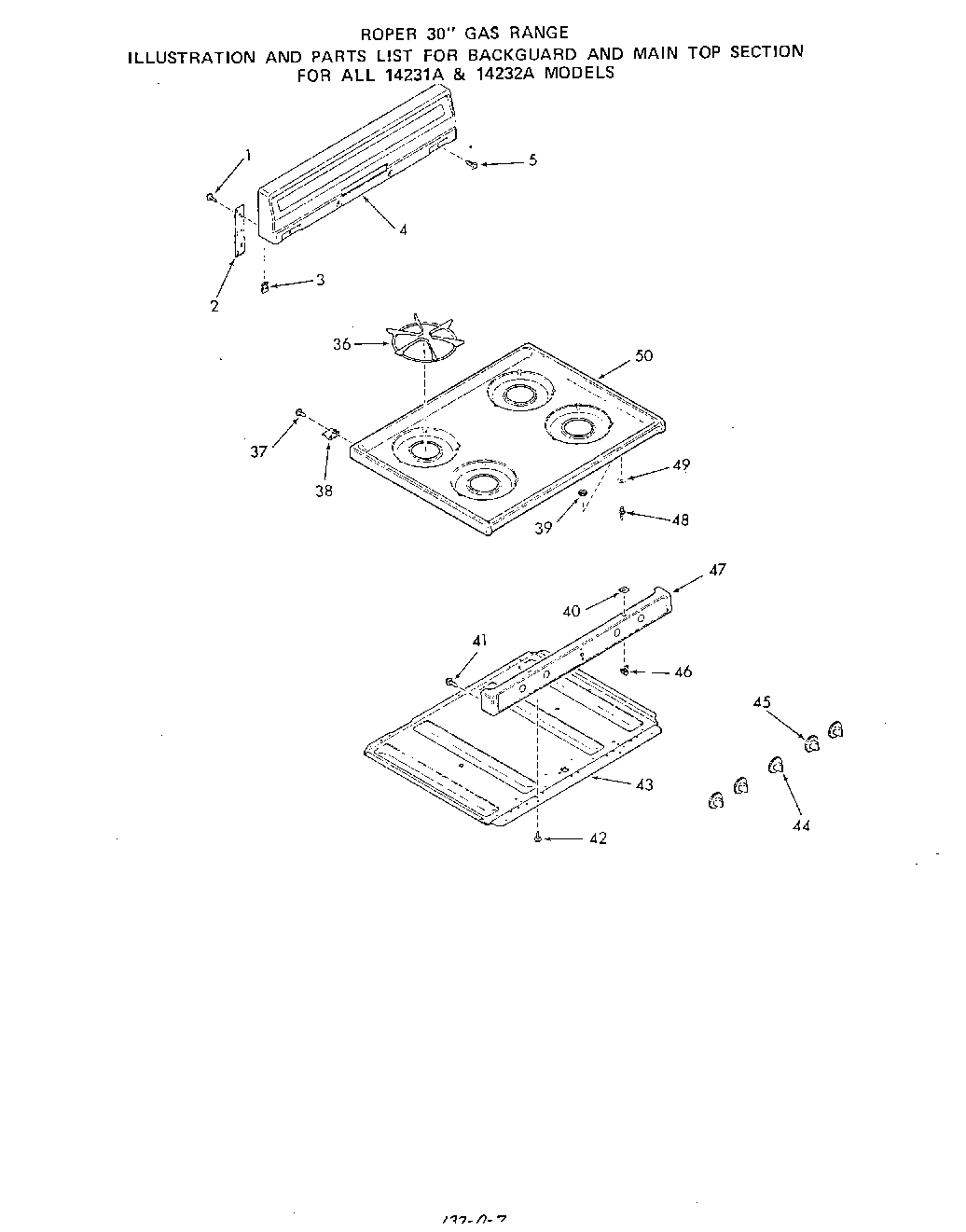

02 - BACKGUARD AND MAIN TOP

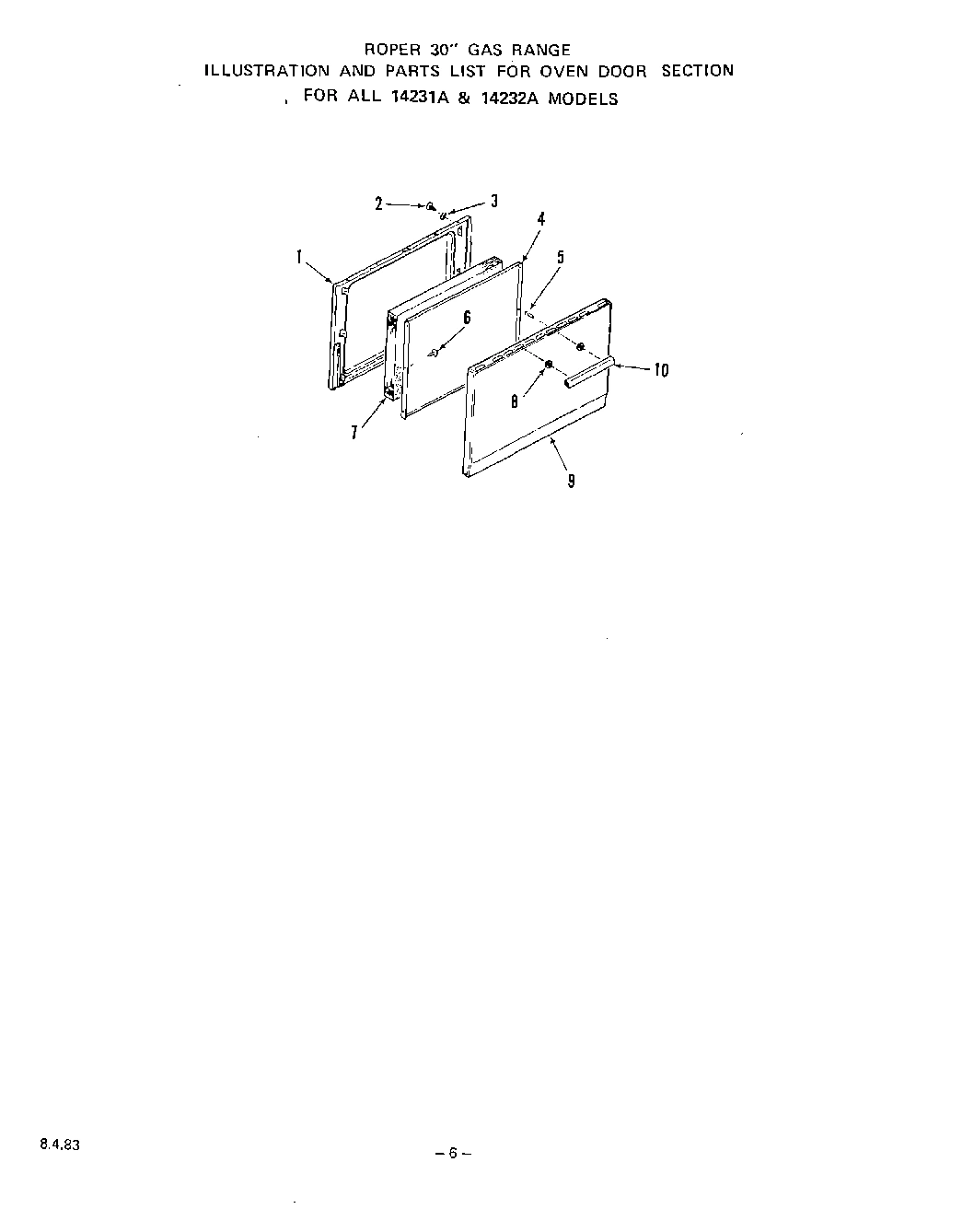

05 - OVEN DOOR

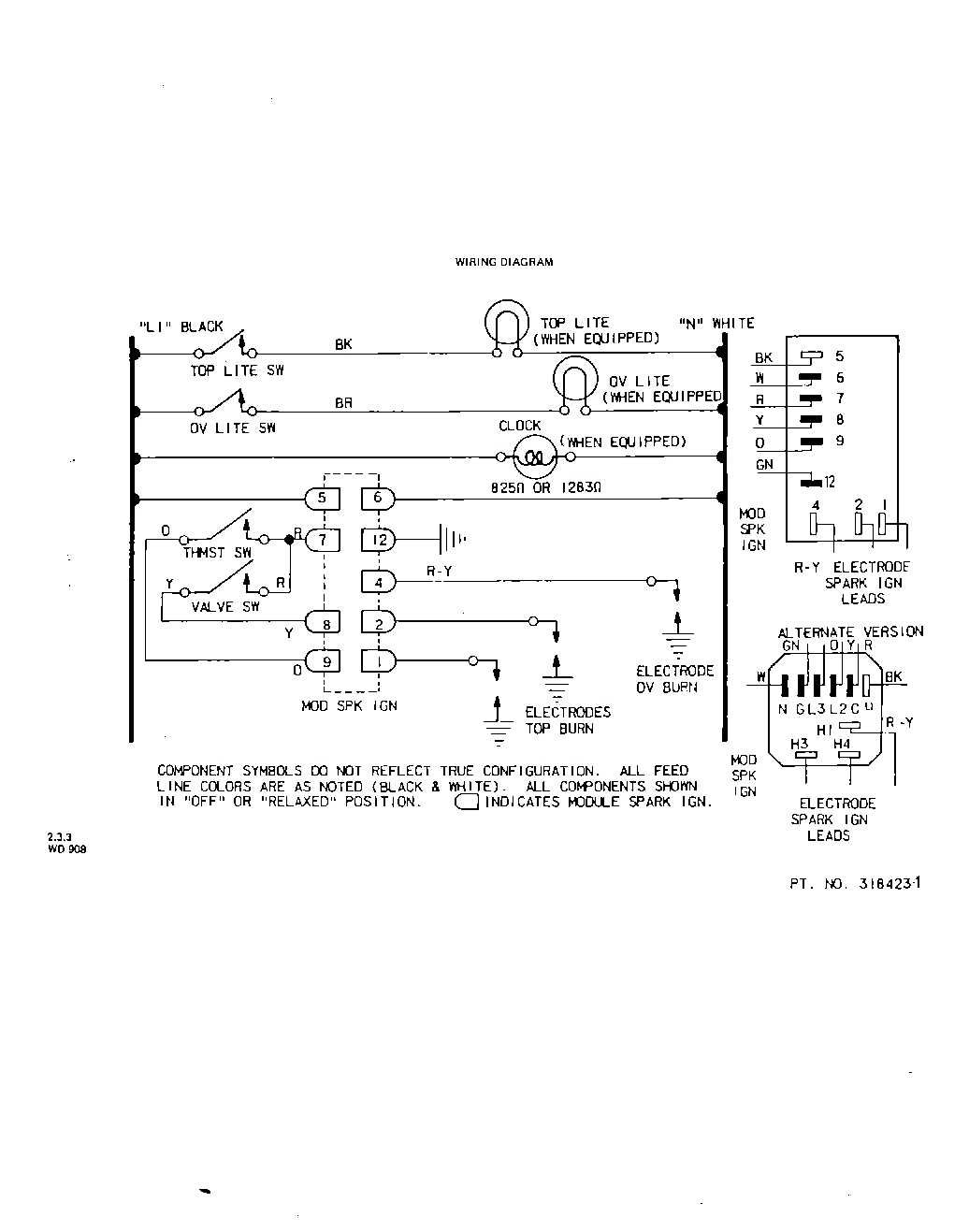

07 - WIRING DIAGRAM
Common parts from model Whirlpool 1423^1A GAS RANGE
xSwitch (For Key No. 3) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
1
Rear Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310197 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Lining-Oven Door WPL 318526 Contact Us For Availability
2
Front Top Burner-Lt. or Rt. (Inc`s. 5 & 6) WPL 310196 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
2
Support-Backguard (Lt. or Rt.) WPL 296390 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Spacer-Main Top WPL 303513 Contact Us For Availability
3
Washer WPL 21067 Contact Us For Availability
3
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
White-Right WPL 323084 Contact Us For Availability
4
White-Left WPL 323085 Contact Us For Availability
4
Almond-Right WPL 323092 Contact Us For Availability
4
Almond-Left WPL 323093 Contact Us For Availability
4
Body Side WPL ARI8290A21 Contact Us For Availability
4
White WPL 322673 Contact Us For Availability
4
Almond WPL 322674 Contact Us For Availability
4
Backguard WPL ARI8286A18 Contact Us For Availability
4
Retainer-Oven Door Insulation WPL 318463 Contact Us For Availability
5
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
5
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 308735 Contact Us For Availability
7
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Insulation-Oven Door WPL 296142 Contact Us For Availability
8
Module-Spark Igniter WPL 318430 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Right WPL 296327 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 11) WPL ARI8291A84 Contact Us For Availability
8
Spacer-Door Handle WPL 302343 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
White WPL 302075 Contact Us For Availability
9
Almond WPL 308946 Contact Us For Availability
9
Front Panel-Oven Door WPL ARI8295A87 Contact Us For Availability
10
Support-Spark Igniter WPL 318439 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Door Handle WPL 309871 Contact Us For Availability
11
Left WPL 312455 Contact Us For Availability
11
Right WPL 312598 Contact Us For Availability
11
Electrode-Spark Igniter WPL ARI8289A53 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Roller WPL 69006 Contact Us For Availability
12
Support-Top Burner WPL 313375 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Broiler Drawer (Inc`s. 7 & 11) WPL 303904 Contact Us For Availability
13
Valve Cover-Left-14231A Models WPL 321172 Contact Us For Availability
13
White WPL 284278 Contact Us For Availability
13
Black With 1/4`` Faston & Eyelet Terminals WPL 291284 Contact Us For Availability
13
White WPL 321951 Contact Us For Availability
13
Black WPL 321952 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL ARI8296A52 Contact Us For Availability
13
Right WPL 303132 Contact Us For Availability
13
Left WPL 303133 Contact Us For Availability
13
Hinge-Oven Door WPL ARI8292A88 Contact Us For Availability
14
Valve Cover-Right-14231A Models WPL 321170 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Wire Cover-Oven Thermostat-14231A Models WPL 318460 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Broiler Pan Grid WPL 313071 Contact Us For Availability
16
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
16
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
17
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
18
Tubing 3/16`` WPL 322446 Contact Us For Availability
18
Oven Body WPL 322913 Contact Us For Availability
19
Tubing 3/8`` WPL 295037 Contact Us For Availability
19
Insulation - Oven Back WPL 296140 Contact Us For Availability
20
Pressure Regulator WPL 324529 Contact Us For Availability
20
Main Back WPL 322910 Contact Us For Availability
21
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
22
Mounting Screw (Inc`s. 27) WPL 311455 Contact Us For Availability
22
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
23
Manifold Pipe WPL 318481 Contact Us For Availability
23
Flue Deflector WPL 300917 Contact Us For Availability
24
Mounting Screw (2 Req. for 44) WPL 318478 Contact Us For Availability
24
Clip WPL 106767 Contact Us For Availability
25
Gasket (For 24) WPL 318658 Contact Us For Availability
26
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
26
Range Service Cord WPL 235822 Contact Us For Availability
27
Gasket (For 22) WPL 304241 Contact Us For Availability
27
Wire Shield WPL 318468 Contact Us For Availability
28
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
28
Disconnect WPL 232150 Contact Us For Availability
29
Baffle - Oven Burner WPL 302729 Contact Us For Availability
29
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
30
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
31
Orifice Cup Only (For 35) WPL 318485 Contact Us For Availability
31
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
32
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
32
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
33
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
33
Washer WPL 303963 Contact Us For Availability
34
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
35
Pilot Only (Inc`s. 31) WPL 318486 Contact Us For Availability
35
Broiler Pan WPL 290171 Contact Us For Availability
36
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
36
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
36
Top Grate (4 Required) WPL 316786 Contact Us For Availability
37
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
37
Shoulder Rivet WPL 305064 Contact Us For Availability
37
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
38
Air Shutter WPL 312988 Contact Us For Availability
38
Right WPL 296124 Contact Us For Availability
38
Left WPL 296125 Contact Us For Availability
38
Hinge-Broiler Door WPL ARI8293A85 Contact Us For Availability
38
Retainer-Main Top (2 Required) WPL 301672 Contact Us For Availability
39
Control Valve (Inc`s. 31 & 35) WPL 318482 Contact Us For Availability
39
Keps Nut 8-32 WPL 239764 Contact Us For Availability
40
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
40
Spacer-Broiler Door WPL 296137 Contact Us For Availability
40
Washer WPL 310218 Contact Us For Availability
41
Oven Burner (Inc`s. 29,37 & 38) WPL 319255 Contact Us For Availability
41
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
42
Switch-Valve (1 Ea. Req. WPL 312457 Contact Us For Availability
42
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
43
WPL 318479 WPL 318479 Contact Us For Availability
43
Almond WPL 308942 Contact Us For Availability
43
Front Panel-Broiler Door WPL ARI8294A22 Contact Us For Availability
43
Burner Box Bottom WPL 320408 Contact Us For Availability
44
WPL 318477 WPL 318477 Contact Us For Availability
44
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
45
WPL 318432 WPL 318432 Contact Us For Availability
45
Lining - Broiler Door WPL 296332 Contact Us For Availability
45
Knob-Gas Valve (4 Required) WPL 320904 Contact Us For Availability
46
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
47
White WPL 324531 Contact Us For Availability
47
Almond WPL 324535 Contact Us For Availability
47
Manifold Panel WPL ARI8287A97 Contact Us For Availability
48
WPL 314573 WPL 314573 Contact Us For Availability
48
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
49
WPL 314574 WPL 314574 Contact Us For Availability
49
Washer WPL 99279 Contact Us For Availability
50
WPL 316994 WPL 316994 Contact Us For Availability
50
White WPL 316813 Contact Us For Availability
50
Almond WPL 316814 Contact Us For Availability
50
Main Top WPL ARI8288A54 Contact Us For Availability
51
WPL 101063 WPL 101063 Contact Us For Availability
52
WPL 296069 WPL 296069 Contact Us For Availability
53
WPL 305408 WPL 305408 Contact Us For Availability
54
WPL 305409 WPL 305409 Contact Us For Availability
55
WPL 301624 WPL 301624 Contact Us For Availability
× ![]()
